String Inverter Surge Protection in Saudi Arabia: Essential Guide for Solar PV Protection

Protecting Solar Assets in Saudi Arabia's Expanding Energy Landscape

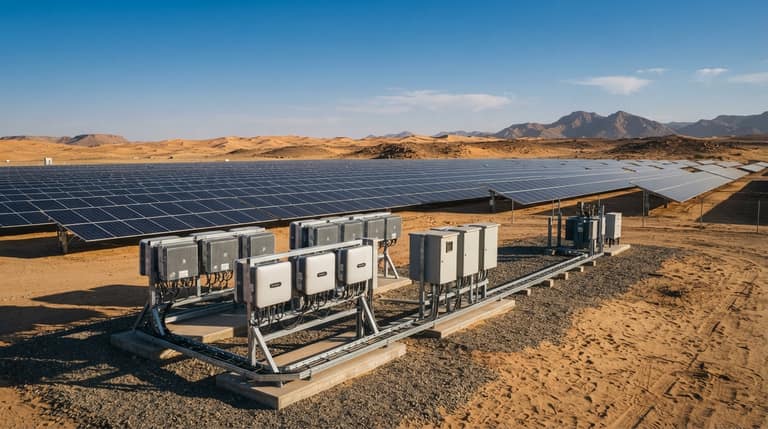

As Saudi Arabia accelerates its National Renewable Energy Program (NREP) under Vision 2030, photovoltaic (PV) infrastructure is expanding rapidly across desert terrains, industrial zones, and commercial rooftops. Central to these installations are solar string inverters—the operational heart of modern PV arrays. However, operating solar equipment in the Kingdom poses unique environmental and electrical challenges. Specifying robust string inverter surge protection in Saudi Arabia is essential to prevent costly equipment failures, reduce downtime, and maximize ROI.

Solar string inverters convert high-voltage direct current (DC) generated by PV module strings into alternating current (AC) for local consumption or grid injection. Because these inverters are directly connected to expansive outdoor solar arrays, they act as primary targets for transient overvoltages caused by atmospheric lightning strikes, switching surges, and grid instability. Without localized surge protection devices (SPDs), sensitive internal electronics like IGBTs, capacitors, and communication boards can suffer catastrophic failure or accelerated degradation.

---

Why String Inverter Surge Protection in Saudi Arabia Demands Rugged Engineering

Saudi Arabia presents one of the most demanding operational environments for power electronics in the world. Standard indoor or mild-climate surge arresters often fail prematurely when exposed to the harsh conditions of the Arabian Peninsula.

1. Thermal Stress and High Ambient Operating Temperatures

Ambient temperatures in regions like Riyadh, the Eastern Province, and the Rub' al Khali frequently exceed 45°C to 50°C during summer months. Inverter enclosures mounted in direct sunlight can experience internal temperatures far higher. Continuous thermal stress accelerates the aging of Metal Oxide Varistors (MOVs)—the primary component inside DC surge protectors—increasing the risk of thermal runaway. Surge protectors must feature advanced thermal disconnection mechanisms engineered for high-temperature stability.

2. Airborne Dust, Sand, and Enclosure Integrity

Fine silica dust (haboob conditions) and sand accumulation pose a significant hazard. Dust ingress can cause tracking currents across insulation surfaces, leading to internal short circuits. SPDs installed inside or alongside string inverters must maintain high Ingress Protection (IP) ratings (minimum IP65 for outdoor combiner boxes or enclosure integrations) to ensure high-voltage DC terminals remain isolated from environmental contaminants.

3. Atmospheric Lightning Surges and Grounding Challenges

While annual rainfall in Saudi Arabia is low, seasonal thunderstorms along the Red Sea coast (Jeddah, Yanbu), the western highlands (Asir region), and central plateaus produce intense cloud-to-ground lightning events. Additionally, the dry, sandy soil common across the region creates naturally high soil resistivity, making low-impedance earthing systems difficult to achieve. When lightning strikes nearby solar structures, the resulting ground potential rise (GPR) and electromagnetic coupling induce massive voltage surges on DC string cables heading straight into the inverter.

---

Selecting the Right DC SPD: Type 1 vs. Type 2 Considerations

When designing string inverter surge protection in Saudi Arabia, specifying the correct surge protection device (SPD) according to International Electrotechnical Commission (IEC) standards—specifically IEC 61643-31 (for photovoltaic surge protective devices)—is crucial.

Type 2 DC Surge Protectors (Indirect Lightning & Switching Transients)

• Application: Installed on the DC input side of string inverters located in areas where the likelihood of a direct lightning strike to the PV structure is low, or where an external Lightning Protection System (LPS) maintains safe separation distances.
• Key Parameters: Evaluated using a 8/20 µs current waveform ($I_{n}$ nominal discharge current, $I_{max}$ maximum discharge current).
• Use Case: Commercial rooftop PV systems in urban Saudi centers or ground-mounted arrays equipped with isolated air-termination networks.

Type 1 + 2 DC Surge Protectors (Direct Lightning Currents)

• Application: Essential for installations where the PV array is exposed to direct lightning hits or where the inverter enclosure is directly bonded to the external LPS ground network.
• Key Parameters: Tested with a high-energy 10/350 µs impulse current waveform ($I_{imp}$).
• Use Case: Remote desert utility-scale ground-mount projects, exposed mountain installations, and telecommunications solar power setups across Saudi Arabia.

System Voltage Alignment: 1000V DC vs. 1500V DC

Modern utility and large commercial solar projects in the Middle East favor 1500V DC string inverter topologies to minimize balance-of-system (BOS) costs. It is imperative that the Maximum Continuous Operating Voltage ($U_{cpv}$) of the SPD matches or exceeds the maximum open-circuit voltage ($U_{oc\,stc}$) of the solar string under lowest expected ambient temperatures.

$$

U_{cpv} \ge 1.2 \times U_{oc\,stc}

$$

Using an under-rated SPD leads to frequent false triggering and premature breakdown, while an over-rated device provides insufficient protection ($V_p$ too high).

---

Essential Buying & Engineering Tips for Saudi PV Projects

To ensure uninterrupted generation over a project's 25-year operational lifecycle, EPCs and solar developers should apply the following guidelines when evaluating DC surge protection options:

1. Verify Thermal Disconnector Performance: Ensure the SPD incorporates a fail-safe internal disconnector with high arc-extinguishing capability. Direct-current arcs do not cross zero points like AC arcs, making them difficult to extinguish. Specialized high-voltage DC fuses or internal rotational disconnectors prevent fire hazards under thermal overload.

2. Look for Modular Plug-in Design: Field maintenance in harsh desert locations must be fast and simple. Modular plug-in cartridge SPDs allow Operations & Maintenance (O&M) teams to replace spent modules without disconnecting string wiring or powering down the entire inverter cabinet.

3. Integrate Visual and Remote Status Monitoring: Remote desert installations demand real-time visibility. Choose SPDs featuring clear mechanical status windows (Green = OK, Red = Replace) combined with dry contact remote signaling contacts ($NO/NC$) wired into the inverter's monitoring unit or plant SCADA.

4. Check Voltage Protection Level ($V_p$): The impulse withstand voltage ($U_w$) of the string inverter's internal electronics must be strictly higher than the SPD's protection level ($V_p$). For optimal protection, maintain a margin where $V_p \le 0.8 \times U_w$.

---

Practical Installation Guidelines for Maximum Reliability

Even the highest quality DC surge protector will fail to safeguard a string inverter if installed improperly. Follow these field-tested installation practices:

• Minimize Cable Lead Lengths: Keep the total conductor length between the DC busbars, the SPD, and the main earthing bar below 0.5 meters. Long wiring adds inductive reactance, which increases transient voltage overshoot during high-speed surges.
• Optimize Earthing Resistance: In desert environments with poor ground conductivity, utilize soil-enhancement compounds, deep-driven copper-bonded earth rods, or counterpoise grounding grids to achieve target earth resistance (ideally $<10\ \Omega$).
• Separate AC and DC Surge Paths: Route incoming DC string cables separately from outgoing AC grid connections and control wiring to prevent cross-coupling of induced transients.

---

Partner with Protec Power Solution for Solar PV Protection

At Protec Power Solution, we engineer high-performance surge protection devices designed specifically to withstand the world's most severe climatic conditions—from the extreme heat and dust of Middle Eastern deserts to humid, storm-prone tropical environments.

Our specialized range of DC PV Surge Protective Devices offers:

• 1000V and 1500V DC Ratings compliant with IEC 61643-31 / EN 50539-11.
• Robust thermal disconnector technology tailored for sustained elevated ambient temperatures.
• High impulse capability up to $I_{imp} = 12.5\text{ kA}$ (Type 1+2) and $I_{max} = 40\text{ kA}$ (Type 2).
• Plug-in DIN-rail cartridges with integrated remote signal contact outputs for effortless SCADA integration.

Whether you are designing a utility-scale solar plant in Najran, a commercial rooftop in Dammam, or an off-grid system along the Red Sea, Protec Power Solution delivers certified, uncompromising surge protection tailored to your project requirements. Contact our engineering team today to request technical datasheets or consult on customized SPD selection for your string inverter installations.
