Saudi Arabia Utility-Scale Solar SPD Selection: Protecting PV Assets in Extreme Desert Climates

Saudi Arabia’s Vision 2030 has ignited a monumental expansion in renewable energy, transforming vast desert expanses into multi-gigawatt power hubs like the Sudair, Al Shuaibah, and NEOM solar projects. However, maximizing the return on investment (ROI) of these multi-megawatt assets requires a robust overvoltage protection strategy. Specifying the correct Saudi Arabia utility-scale solar SPD (Surge Protection Device) is essential to shield critical DC components, string inverters, central inverters, and tracker controllers from the devastating effects of transient overvoltages.

In utility-scale PV installations, even a single day of downtime caused by a surge event can result in tens of thousands of dollars in lost revenue. For engineering, procurement, and construction (EPC) firms, understanding the unique environmental and electrical challenges of the Middle East—and neighboring high-growth regions like Southeast Asia—is key to building a resilient, long-lasting solar infrastructure.

---

Why the Right Saudi Arabia Utility-Scale Solar SPD Matters for System Lifetime

Utility-scale solar arrays span square kilometers of open flatlands, making them highly susceptible to both direct lightning strikes and indirect induced surges. When lightning strikes the ground near a PV array, the rapidly changing magnetic field induces high-voltage transients in the long DC cabling runs. Without an optimized Saudi Arabia utility-scale solar SPD, these transients travel directly to the inverter's sensitive electronics, causing immediate component destruction or gradual dielectric degradation.

Furthermore, grid switching events on the AC side can propagate back into the system, endangering the AC output of the inverters. Utilizing high-performance surge protection on both the DC and AC sides of the inverter is not just a best practice; it is a fundamental requirement for system bankability.

---

Environmental Stressors: Middle East Desert vs. Southeast Asian Monsoons

Selecting a Saudi Arabia utility-scale solar SPD requires looking beyond standard datasheet values. The geographical environments of the Middle East and Southeast Asia present drastically different physical threats to surge protection components.

Thermal Runaway and Sand-Dust Accumulation in the Middle East

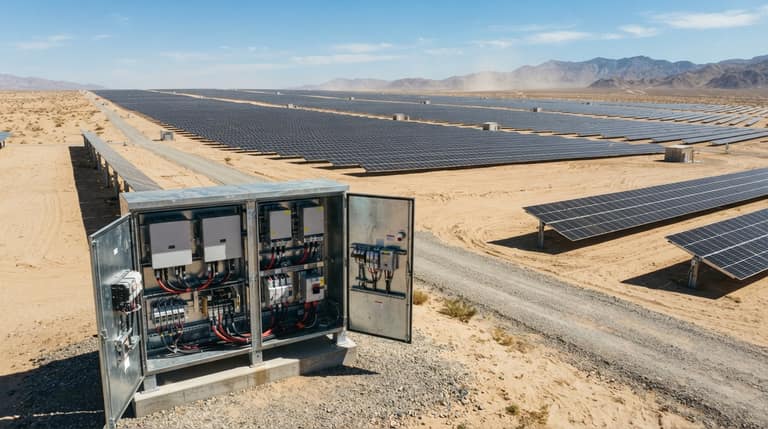

In the Saudi Arabian desert, ambient temperatures regularly exceed 50°C, with internal temperatures inside combiner boxes and inverter enclosures climbing past 70°C.

• Thermal Degradation: Most SPDs utilize Metal Oxide Varistors (MOVs). Continuous high-temperature exposure accelerates the aging of MOVs, increasing leakage current and potentially leading to thermal runaway.
• Sand and Dust Ingress: Fine desert silica can penetrate standard enclosures, creating conductive paths if moisture is present. SPDs must be housed in high-IP-rated enclosures and possess superior thermal disconnection mechanisms that isolate a degraded varistor safely without causing fire hazards.

Tropical Humidity and High Lightning Density in Southeast Asia

Conversely, if you are designing projects for Southeast Asian markets (such as Vietnam, Thailand, or Indonesia), the challenges shift from dry heat to extreme moisture and high isokeraunic levels.

• Extreme Lightning Frequency: Southeast Asia experiences some of the highest lightning strike densities in the world. SPDs in these regions must handle frequent, high-amplitude impulse currents ($I_{imp}$ and $I_{max}$) without premature failure.
• Condensation and Corrosion: High humidity levels can lead to internal condensation inside electrical cabinets. SPDs used here must feature robust anti-corrosive terminals and encapsulated designs to prevent moisture-induced tracking paths.

---

Technical Parameters for Selecting a Saudi Arabia Utility-Scale Solar SPD

When evaluating surge protectors for utility-scale applications, engineers must carefully match the electrical characteristics of the SPD to the PV system design.

1. DC vs. AC Protection (Type 1 vs. Type 2)

• Type 1 SPDs: Installed at the main service entrance or PV combiner boxes if the site is equipped with an External Lightning Protection System (LPS) featuring lightning rods. Type 1 SPDs are tested with a $10/350 \, \mu\text{s}$ waveform, designed to handle direct lightning currents.
• Type 2 SPDs: Installed closer to the inverters and DC combiner boxes to protect against induced overvoltages ($8/20 \, \mu\text{s}$ waveform). For most utility-scale sites, a combination of Type 1+2 or Type 2 on the DC side is standard.

2. Maximum Continuous Operating Voltage ($U_{cpv}$)

In modern utility-scale designs, DC system voltages have transitioned from 1000V to 1500V to minimize cable losses and installation costs. Your selected Saudi Arabia utility-scale solar SPD must have a $U_{cpv}$ rating of at least 1500V DC. If the open-circuit voltage ($U_{oc}$) of the PV string under peak cold conditions exceeds the SPD's $U_{cpv}$, the SPD will conduct continuously, leading to rapid degradation and failure.

3. Short-Circuit Current Rating ($I_{scpv}$)

The $I_{scpv}$ of the SPD must be greater than the maximum short-circuit current of the PV string or array to which it is connected. In high-power utility-scale arrays, this is especially critical to prevent catastrophic arc-flash events during an SPD failure.

4. Voltage Protection Level ($U_p$)

The voltage protection level ($U_p$) defines the maximum voltage that will reach the downstream equipment during a surge. This value must be significantly lower than the impulse withstand voltage rating ($U_w$) of the inverter's internal components (typically 6kV to 8kV for 1500V DC systems).

---

| Parameter | Description | Recommended Standard for 1500V DC Systems |

| :--- | :--- | :--- |

| SPD Type | Level of lightning/surge protection | Type 1+2 or Type 2 (IEC 61643-31) |

| $U_{cpv}$ | Max Continuous Operating Voltage | $\ge 1500\text{V DC}$ |

| $I_n$ ($8/20 \, \mu\text{s}$) | Nominal Discharge Current | $\ge 20\text{kA}$ |

| $I_{max}$ ($8/20 \, \mu\text{s}$)| Max Discharge Current | $\ge 40\text{kA}$ |

| $I_{scpv}$ | Short-Circuit Current Rating | Must exceed the array's short-circuit current |

---

Practical Buying and Installation Tips for Utility-Scale PV Projects

To ensure your selected Saudi Arabia utility-scale solar SPD performs reliably over its expected 25-year lifetime, follow these crucial installation and procurement guidelines:

Keep Connection Lead Lengths as Short as Possible

The physical installation of the SPD dictates its real-world performance. According to IEC standards, the total lead length (connecting conductor from the DC positive bus, negative bus, and ground) should not exceed 50 cm. Long wires introduce parasitic inductance, which adds to the voltage protection level ($U_p$), significantly reducing the protection level offered to the inverter.

Optimize Grounding and Bonding

Without a low-impedance path to earth, an SPD cannot divert surge currents effectively. Ensure the utility-scale grounding grid achieves a resistance of less than 10 ohms (ideally less than 5 ohms). Copper or specialized grounding conductors must be securely bonded to the main grounding busbar of the inverter station.

Choose SPDs with Remote Signaling Contacts

In a massive multi-megawatt solar farm, physically inspecting thousands of SPDs to check their status indicator windows is labor-intensive and inefficient. Opt for SPDs equipped with dry/floating remote signaling contacts. These can be integrated into the plant’s SCADA system, sending instant alerts to the O&M (Operations & Maintenance) team when a module needs replacement.

Select Plug-in Cartridge Designs

When an SPD sacrifices itself to protect the inverter, quick maintenance is critical. Plug-in cartridge designs allow O&M technicians to replace the degraded MOV module in seconds without disconnecting the system wiring, reducing maintenance downtime to nearly zero.

---

Securing Your PV Infrastructure with Protec Power Solution

As a global leader in electrical protection, Protec Power Solution manufactures state-of-the-art surge protection devices tailored to the world's most demanding climates. Our specialized range of 1500V DC SPDs is designed to withstand the extreme thermal demands of Middle Eastern deserts and the intense lightning frequencies of Southeast Asia.

Every Protec Power SPD features advanced thermal disconnection technology, high-capacity MOVs, and robust enclosure ratings designed to lock out dust and moisture. Partner with Protec Power Solution to ensure your utility-scale solar assets remain online, efficient, and fully protected against transient overvoltages. Contact our engineering team today to review your project specifications.
